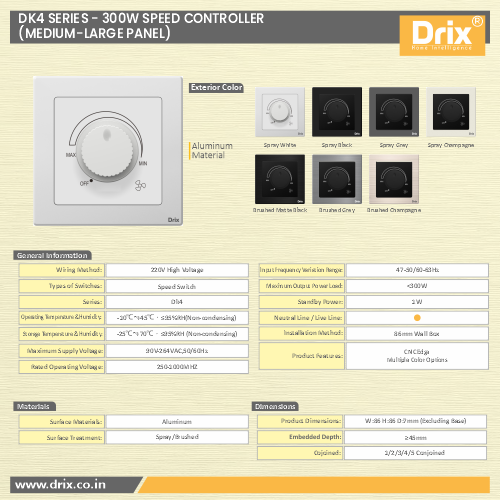

DK4 - SPEED CONTROLLER
DK4 - SPEED CONTROLLER
Take command of fan or motor speeds with this KNX speed controller. Featuring precise adjustment, convenient CNC edge assembly, and multiple color options to match your interior.
Wiring Method & Types of Switches:
220V High Voltage & Speed Switch
Operating Temperature & Humidity & Storage Temperature & Humidity:
-10?~+45?,=95%RH(Non-condensing) & -25?~+70?,=95%RH (Non-condensing)
Maximum Supply Voltage & Rated Operating Voltage:
90V-264VAC,50/60Hz & 250-1000MHZ
Input Frequency Variation Range & Maximum Output Power Load:
47-50/60-63Hz & <300W
Available Color :
Spray White, Spray Grey, Spray Champagne, Spray Black, Brushed Grey, Brushed Grey, Brushed Champagne, Brushed Black
Product Dimensions:
W:86 H:86 D:7mm (Excluding Base)
Conjoined:
1/2/3/4/5 Conjoined
